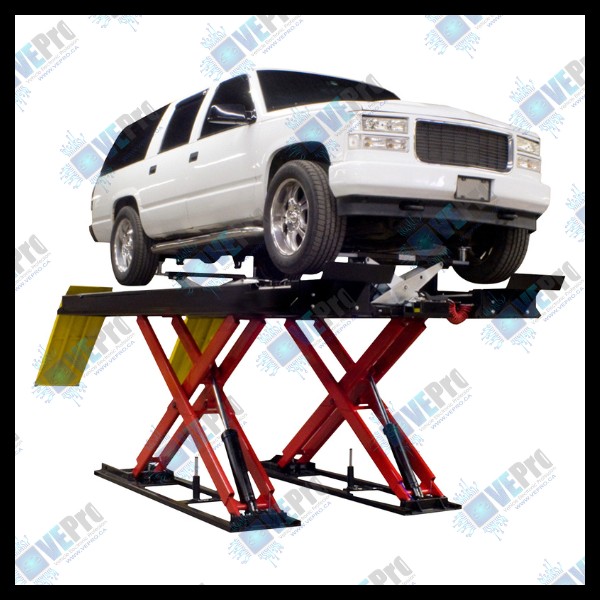

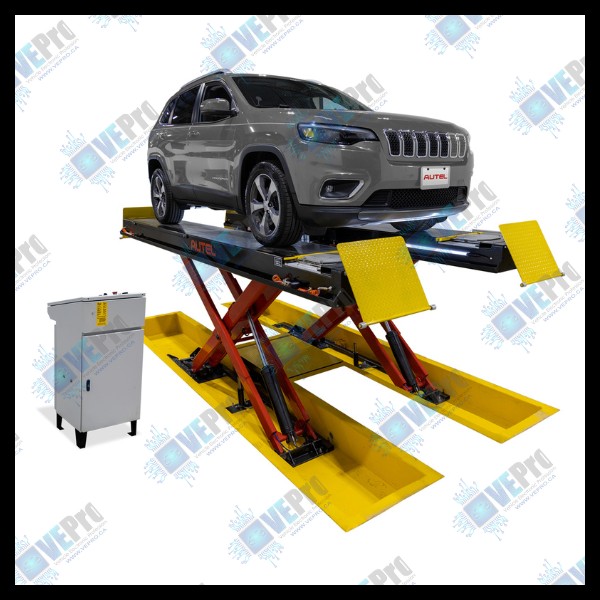

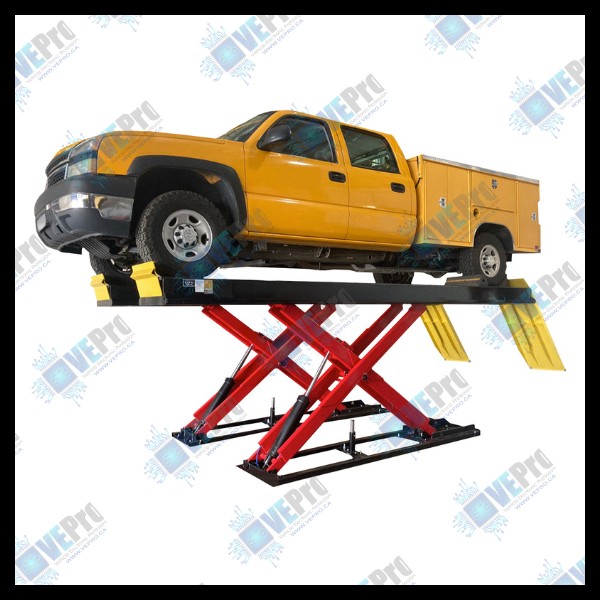

Autel 16K Flush Mounted Bay Max Scissor Alignment Lift with Extended Runways

The Autel 16K Flush Mounted Bay Max Scissor Alignment Lift with Extended Runways (S16ALOR1TX) is an ALI-certified 16,000 lb. capacity alignment lift engineered for high-volume automotive service centers that require both precision wheel alignments and ADAS calibrations within a standard service bay. Featuring an integrated 1,000 lb. Floor Scissor Lift Table, this Bay Max system allows technicians to perform calibration and alignment services without dedicating additional shop space.

Designed with a flush-mounted installation, open front and rear configuration, and bolt-on extended runways, the S16ALOR1TX accommodates longer wheelbase vehicles while providing unrestricted access for alignment procedures. Double-wide reinforced runways with structural “Z” rails minimize sagging and flexing, delivering exceptional rigidity and alignment accuracy.

Premium alignment components include pneumatic-locking stainless steel front radius plates, full-floating rear slip plates, UHMW turn plate pocket protectors, rollback bars, and a fixed front wheel stop for consistent vehicle positioning. Two included 8,000 lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents expand service capabilities for suspension, brake, and tire work.

Technician-focused features such as shatterproof 24-inch LED runway lighting with automatic shutoff, a center-mounted air outlet, integrated tire inflation kits at each wheel, and an enclosed console-mounted 220V single-phase power unit help improve productivity and streamline daily operations. Manufactured in North America, the S16ALOR1TX delivers the durability, versatility, and precision demanded by today’s professional alignment and ADAS service facilities.

✅ Key Features
16,000 lb. (7,257 kg) lifting capacity for passenger vehicles, SUVs, vans, and light-duty trucks
Integrated 1,000 lb. Floor Scissor Lift Table for performing ADAS calibrations within the service bay
Flush-mounted installation for a clean, in-ground workshop layout
Bolt-on extended runways for servicing longer wheelbase vehicles
Open front and rear runway design for unrestricted alignment access
Double-wide reinforced runways with structural “Z” rails for superior rigidity and alignment accuracy
ALI Certified for professional safety and reliability
Pneumatic-locking stainless steel front radius plates
Full-floating rear slip plates with pneumatic locking
UHMW turn plate pocket protectors help reduce wear and prevent paint damage
Rollback bars and fixed front wheel stop for accurate vehicle positioning
Includes two 8,000 lb. heavy-duty air/hydraulic rolling jacks
Center-mounted air outlet with tire inflation kits at each wheel
Shatterproof 24-inch LED lighting kit with automatic shutoff

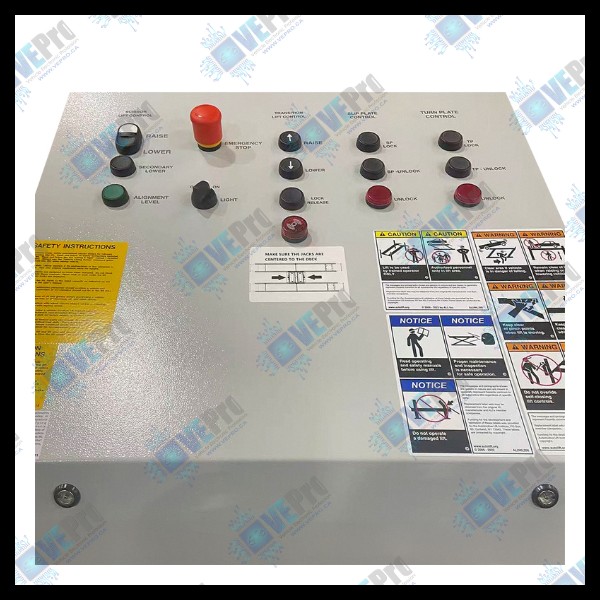

Enclosed console-mounted 220V single-phase power unit
Manufactured in North America

✅ What’s Included
Autel S16ALOR1TX Flush Mounted Bay Max Alignment Scissor Lift
Integrated 1,000 lb. Floor Scissor Lift Table
Bolt-On Extended Runways
Two 8,000 lb. Air/Hydraulic Rolling Jacks
Pneumatic-Locking Front Radius Plates
Full-Floating Rear Slip Plates
UHMW Turn Plate Pocket Protectors
Rollback Bars
Fixed Front Wheel Stop
Center-Mount Air Outlet Kit
Tire Inflation Air Kits (One at Each Wheel)
Shatterproof 24-inch LED Light Kit

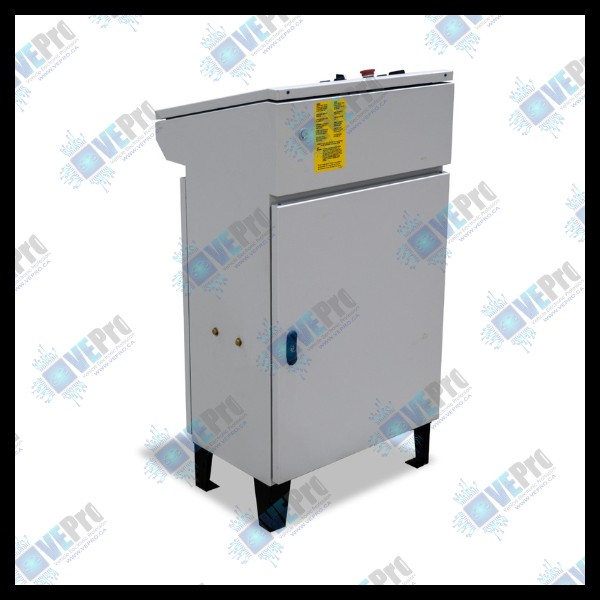

Enclosed Console with 220V Single-Phase Power Unit

✅ Ideal For
ADAS Calibration Centers
Professional Wheel Alignment Shops
High-Volume Automotive Repair Facilities
Commercial Fleet Maintenance Centers
Tire & Suspension Specialists
Workshops Servicing Long Wheelbase Vehicles

✅ Warranty
Lift: 3-Year Limited Warranty
Rolling Jacks: 5-Year Parts Warranty
Accessories: 90-Day Limited Warranty
